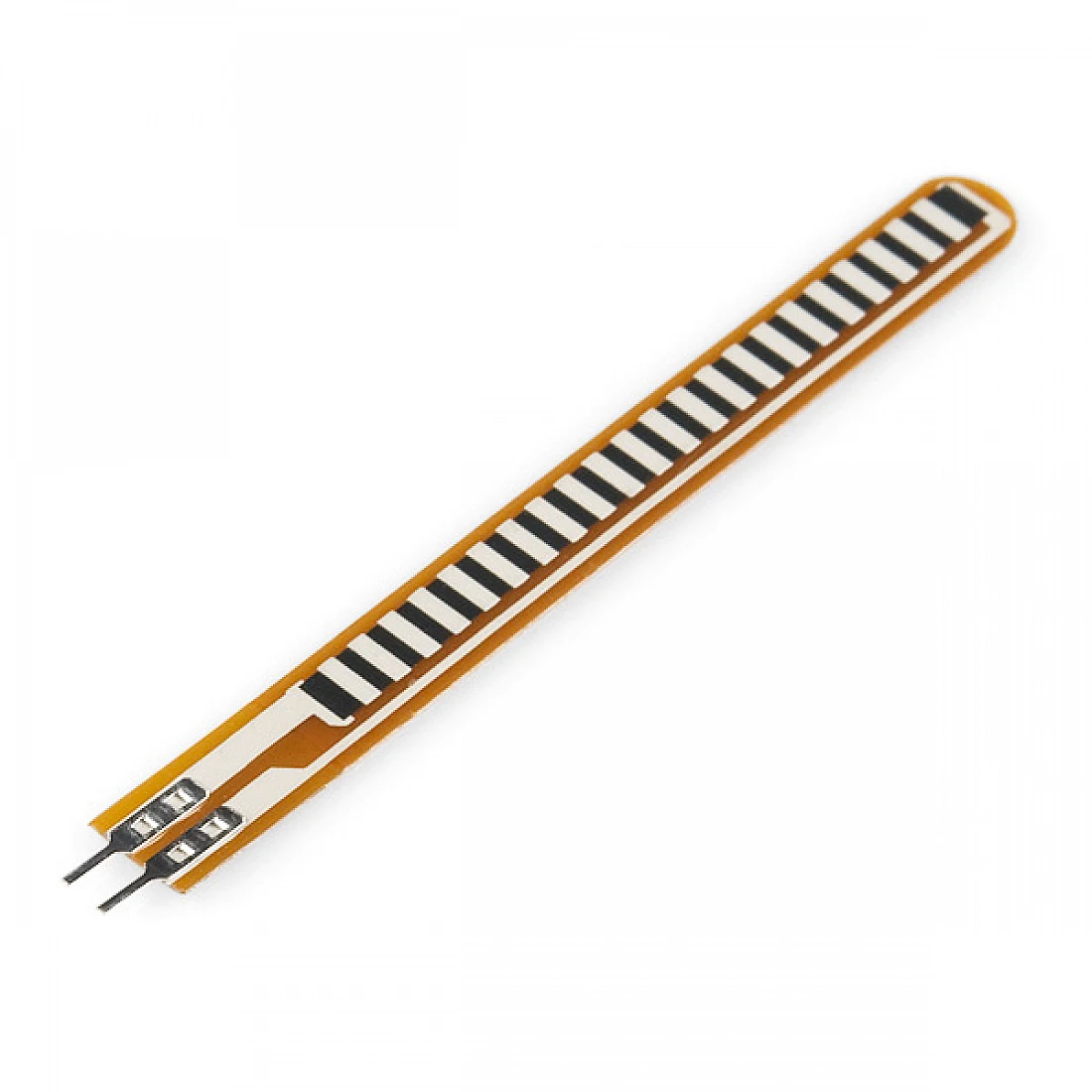

Spectra Symbol Flex Sensor FS-L-055-253-MP (80mm, 3.5″) – Male Pins Connector | Hand Gesture Bend Sensor – KSP Electronics
Technical Specifications
-
Model: FS-L-055-253-MP
-
Brand: Spectra Symbol
-
Flex Length: 7.5 cm (2.2″)
-
Total Length: 8 cm (3.5″)
-
Flat Resistance: 10K Ohms ±30%
-
Power Rating: 0.5 W
-
Connector Type: Male Pins (0.1″ spacing)
-
Sensor Height: 0.43 mm
-
Life Cycle: Over 1 million bends
Original price was: ₹550.00.₹480.00Current price is: ₹480.00. (Incl. GST)
Loading shipping timer...
🛵 Hyderabad Customers:
Same-day delivery available via Rapido, Uber, or Porter!
Place your order before 2 PM. Extra charges may apply.
Same-day delivery available via Rapido, Uber, or Porter!
Place your order before 2 PM. Extra charges may apply.
2 in stock
For bulk orders or B2B inquiries, email us: [email protected]
+91 9550421866
188
People watching this product now!
-
Pick up from the Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-5 Days
Payment Methods:
Description
Looking for a high-quality bend sensor for your robotics, medical, or gesture recognition project?
The Spectra Symbol Flex Sensor FS-L-055-253-MP (80mm) is a premium-grade 2.2″ flex sensor designed to detect physical bending or flexing. As the sensor bends, its resistance increases, making it perfect for angle detection, hand gesture recognition, and wearable tech projects.
With its male pin connector (0.1″ spacing), it is breadboard-compatible and easy to integrate into your electronics projects using platforms like Arduino, Raspberry Pi, or ESP32.
Applications in Robotics and Gestures
The Spectra Symbol Flex Sensor (80mm) is the absolute industry standard for building robotic hands, VR gloves, and gesture-controlled interfaces. As the sensor is bent, the resistance across the sensor increases. This analog data can easily be read by an Arduino or ESP32 ADC pin to perfectly map finger movements.
- Robotic Prosthetics: Track human finger joints to mimic movement on a robotic hand.
- Virtual Reality Gloves: Accurate bend mapping for VR controllers.
- Medical Devices: Used in physiotherapy to measure joint angle recovery.
Buy the authentic Spectra Symbol FS-L-055-253-MP from KSP Electronics for your next major engineering project.
Additional information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 3.5 × 1 × 1 cm |
Reviews (1)
1 review for Spectra Symbol Flex Sensor FS-L-055-253-MP (80mm, 3.5″) – Male Pins Connector | Hand Gesture Bend Sensor – KSP Electronics
Clear filtersOnly logged in customers who have purchased this product may leave a review.
Verified owner Ajay Shankar (verified owner) –
Using this 3.5 inch flex sensor for a robotic glove. Excellent bend resistance and very precise output. Arrived quickly in Bhopal.
