Arduino UNO R3 ATmega16U2 ATmega328 DIP Board

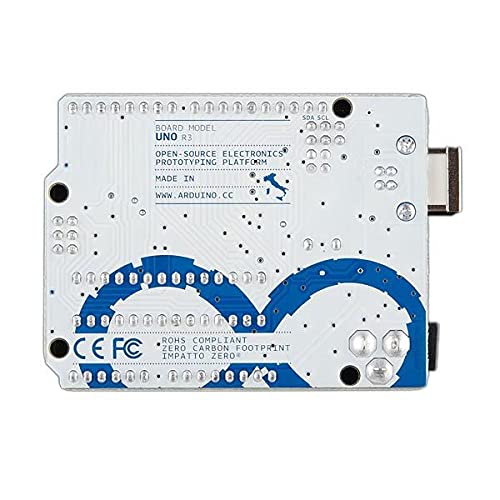

ardunio uno r3
    Arduino UNO R3 ATmega16U2 ATmega328 DIP Board
    ardunio uno r3

    Arduino UNO R3 ATmega16U2 ATmega328 (DIP)

    Original price was: ₹849.Current price is: ₹480. (Incl. GST)

    Hyderabad: same-day delivery if you order before 2 PM (extra charges may apply)

    48 in stock

    Buying for a business, school or lab? Get a GST invoice & bulk pricing.
    WhatsApp us for a quote  ·  [email protected]

    • GST invoice
    • Official warranty
    • Secure payment
    • 7-day return on defects & transit damage
    🚚 Check Delivery & Estimated Date
    SKU: KSP-ARD-UNO-R3-DIP Brand:

    The industry-standard Arduino UNO R3 featuring the removable ATmega328P (DIP) chip and ATmega16U2 USB converter. Perfect for robotics, IoT, and engineering projects.

    Compare
    Add to wishlist
    Description

    Arduino UNO R3 ATmega328P – Official Board with ATmega16U2 USB Interface

    The Arduino UNO R3 is the most popular open-source microcontroller board in the world. Powered by the ATmega328P and using the ATmega16U2 for USB communication, it offers true USB serial compatibility without drivers on most systems. The DIP package makes it easy to swap the microcontroller if needed.

    Key Features

    • 14 digital I/O pins (6 capable of PWM output)
    • 6 analog input pins with 10-bit ADC resolution
    • ATmega16U2 USB-to-serial converter for reliable PC communication
    • 16 MHz crystal oscillator for accurate timing
    • ICSP header for direct SPI programming
    • Compatible with all official Arduino shields and libraries
    • Reset button and on-board power LED

    Getting Started

    Connect the board to your PC using a standard USB-B cable. Install the Arduino IDE and select Arduino UNO from the board list. No driver installation needed on most modern operating systems. Pair it with a DHT11 sensor or breadboard to start your first project.

    Applications

    • Home automation and IoT prototyping
    • Robotics and motor control projects
    • Weather monitoring stations
    • LED matrix and display control
    • Engineering and college project kits

    Package Contents

    • 1 × Arduino UNO R3 Board (ATmega16U2, DIP)
    Specification

    Technical Specifications

    ParameterDetails
    MicrocontrollerATmega328P
    USB Interface ChipATmega16U2
    Operating Voltage5V
    Input Voltage (recommended)7 – 12V
    Input Voltage (limit)6 – 20V
    Digital I/O Pins14 (6 PWM)
    Analog Input Pins6
    DC Current per I/O Pin20 mA
    Flash Memory32 KB (0.5 KB bootloader)
    SRAM2 KB
    EEPROM1 KB
    Clock Speed16 MHz
    Package TypeDIP
    Board Dimensions68.6 × 53.4 mm
    Weight~25 g
    Warranty

    15 Days Warranty

    This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. Replacement will be done against manufacturing defects.

    What Voids Warranty

    Warranty is void if the product is subject to any of the following:

    • Misuse or tampering
    • Static discharge
    • Accident, water, or fire damage
    • Use of chemicals
    • Soldered or altered in any way

    Submit a Support Ticket →
