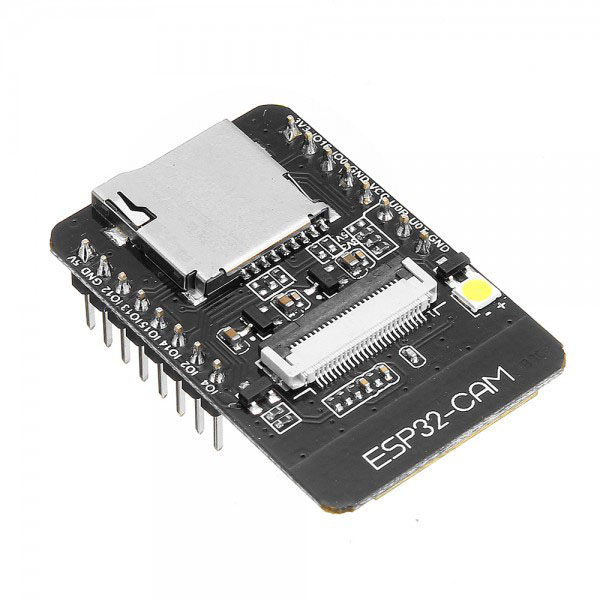

ESP32-CAM WiFi Bluetooth Development Board with OV2640 Camera Module

The ESP32-CAM combines the ESP32 dual-core processor with an OV2640 2MP camera, Wi-Fi, Bluetooth 4.2, and a microSD slot in one ultra-compact module. Ideal for video streaming, face detection, image capture, and IoT surveillance projects.

OV2640 2MP camera with built-in flash LED
Wi-Fi 802.11 b/g/n + Bluetooth 4.2 & BLE built in
Dual-core up to 240 MHz, 520 KB SRAM + 4 MB PSRAM
MicroSD card slot, 9 GPIO, supports UART/SPI/I2C/PWM/ADC/DAC

Original price was: ₹799.00.Current price is: ₹699.00. (Incl. GST)

Loading shipping timer...

🛵 Hyderabad Customers:
Same-day delivery available via Rapido, Uber, or Porter!
Place your order before 2 PM. Extra charges may apply.

100 in stock (can be backordered)

For bulk orders or B2B inquiries, email us: [email protected]
+91 9550421866

SKU: KSP-ESP32-CAM

161 People watching this product now!

Pick up from the Store

To pick up today

Courier delivery

Our courier will deliver to the specified address

2-5 Days

Payment Methods:

Description

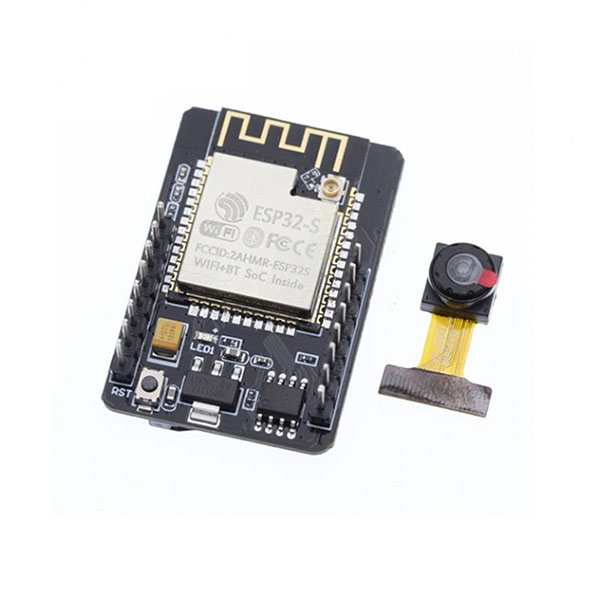

The ESP32-CAM is a compact, low-cost development board that integrates the powerful ESP32-S dual-core processor with an OV2640 2-megapixel camera, Wi-Fi 802.11 b/g/n, Bluetooth 4.2 + BLE, and a microSD card slot. It operates as a fully standalone system — making it one of the most versatile modules for IoT camera applications, video streaming, and AI vision projects.

Key Features

OV2640 2MP Camera with built-in flash LED (also supports OV7670)
Dual-Core Xtensa LX6 up to 240 MHz, 600 DMIPS
520 KB SRAM + 4 MB PSRAM for image buffering and processing
4 MB SPI Flash for firmware storage
Wi-Fi 802.11 b/g/n/e/i — STA / AP / STA+AP modes
Bluetooth 4.2 + BLE built-in
IPEX connector + onboard PCB antenna
MicroSD card slot for local image and video storage
9 GPIO pins — UART, SPI, I2C, PWM, ADC, DAC
Multiple sleep modes for battery-powered deployments
OTA firmware updates (FOTA) and Smart Config / AirKiss provisioning
Embedded Lwip and FreeRTOS

Common Applications

Live Wi-Fi video streaming (MJPEG / JPEG)
Face detection and recognition (using ESP-WHO framework)
QR code and barcode scanning
Home security cameras and doorbell cameras
Time-lapse photography and wildlife monitoring
Smart attendance systems with facial recognition
IoT image capture and cloud upload
Industrial wireless visual inspection

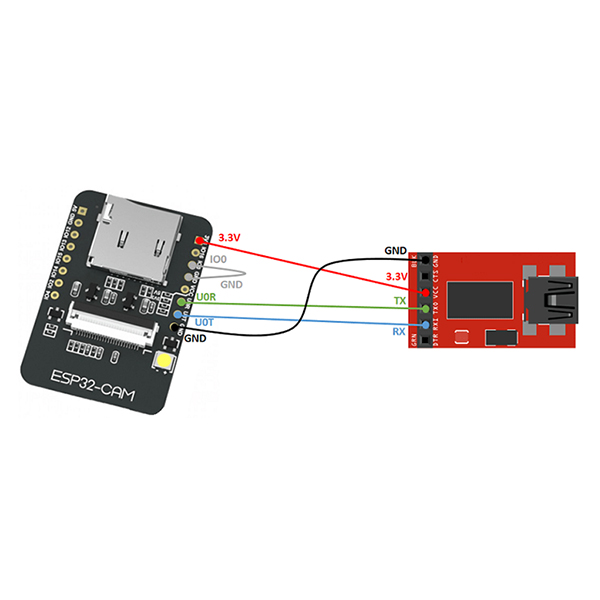

Flashing Guide

The ESP32-CAM does not have a built-in USB port. You need a USB-to-TTL adapter (CP2102, 5-pin) to flash firmware.

Connect IO0 to GND before powering on to enter flash mode
Upload your sketch via Arduino IDE or ESP-IDF
Disconnect IO0 from GND and reset to run the uploaded firmware
In Arduino IDE: install Espressif ESP32 board package, select AI-Thinker ESP32-CAM

Development Environment Support

Arduino IDE — AI-Thinker ESP32-CAM preset via Espressif board package
ESP-IDF — Full Espressif IoT Development Framework support
MicroPython — Community firmware builds available
PlatformIO — VS Code extension, native ESP32-CAM support

Package Contents

1 x ESP32-CAM WiFi Bluetooth Development Board with OV2640 Camera Module

Note: A CP2102 USB-to-TTL programmer is required for flashing and is not included. MicroSD card not included.

Related Products

Browse our ESP32 and ESP8266 boards or see the ESP32 CP2102 Development Board (30 PIN) for non-camera projects.

Specification

Model	ESP32-CAM
CPU	Dual-core Xtensa LX6, up to 240 MHz
RAM	520 KB SRAM + 4 MB PSRAM
Flash	32 Mbit (4 MB) SPI Flash
Camera	OV2640 2MP (supports OV7670)
Wi-Fi	802.11 b/g/n/e/i (2.4 GHz)
Bluetooth	4.2 + BLE
Antenna	IPEX connector + onboard PCB antenna
Input Voltage	3.6V – 5V
GPIO Pins	9 custom I/O
Interfaces	UART, SPI, I2C, PWM, ADC, DAC
Storage	MicroSD card slot (TF card)
UART Baud Rate	115200 bps (default)
Security	WPA / WPA2 / WPA2-Enterprise / WPS
Operating Temperature	-20°C to +80°C
Board Dimensions	41 x 27 x 5 mm
Weight	0.02 kg
Shipping Dimensions	4.1 x 2.7 x 0.5 cm

Warranty

Supplier Warranty: 6 months from date of purchase, provided by KSP Electronics against manufacturing defects only. In case of a verified defect, the product will be replaced after confirmation by our team.

How to Claim: Email [email protected] or call +91 95504 21866 with your order details.

What voids the warranty: Misuse, tampering, unauthorized modifications, static discharge, accidental damage, water or fire damage, soldering or physical alteration.

QnA

Q: Do I need a programmer to use the ESP32-CAM?
Yes. The ESP32-CAM has no built-in USB port. You need a CP2102 (5-pin) USB-to-TTL adapter to flash firmware. Connect IO0 to GND before powering on to enter flash mode.

Q: Can I power it via the GPIO pins?
Yes. Supply 5V to the 5V pin or 3.3V to the 3.3V pin. Ensure your power source can provide at least 500mA as the board draws significant current during Wi-Fi transmission.

Q: What is the maximum camera resolution?
The OV2640 supports up to 1600x1200 (UXGA / 2MP) for still images. For video streaming, typical resolutions are 640x480 (VGA) or 320x240 (QVGA) for smooth frame rates over Wi-Fi.

Q: Can I use a microSD card with it?
Yes. The board has a microSD card slot (TF card). Note that when the microSD card is in use, several GPIO pins are occupied by the SPI interface, limiting available I/O.

Q: Is it compatible with Arduino IDE?
Yes. Install the Espressif ESP32 board package in Arduino IDE (v1.8+ or v2.x), then select AI-Thinker ESP32-CAM from the board list. Many example sketches including CameraWebServer are available out of the box.
