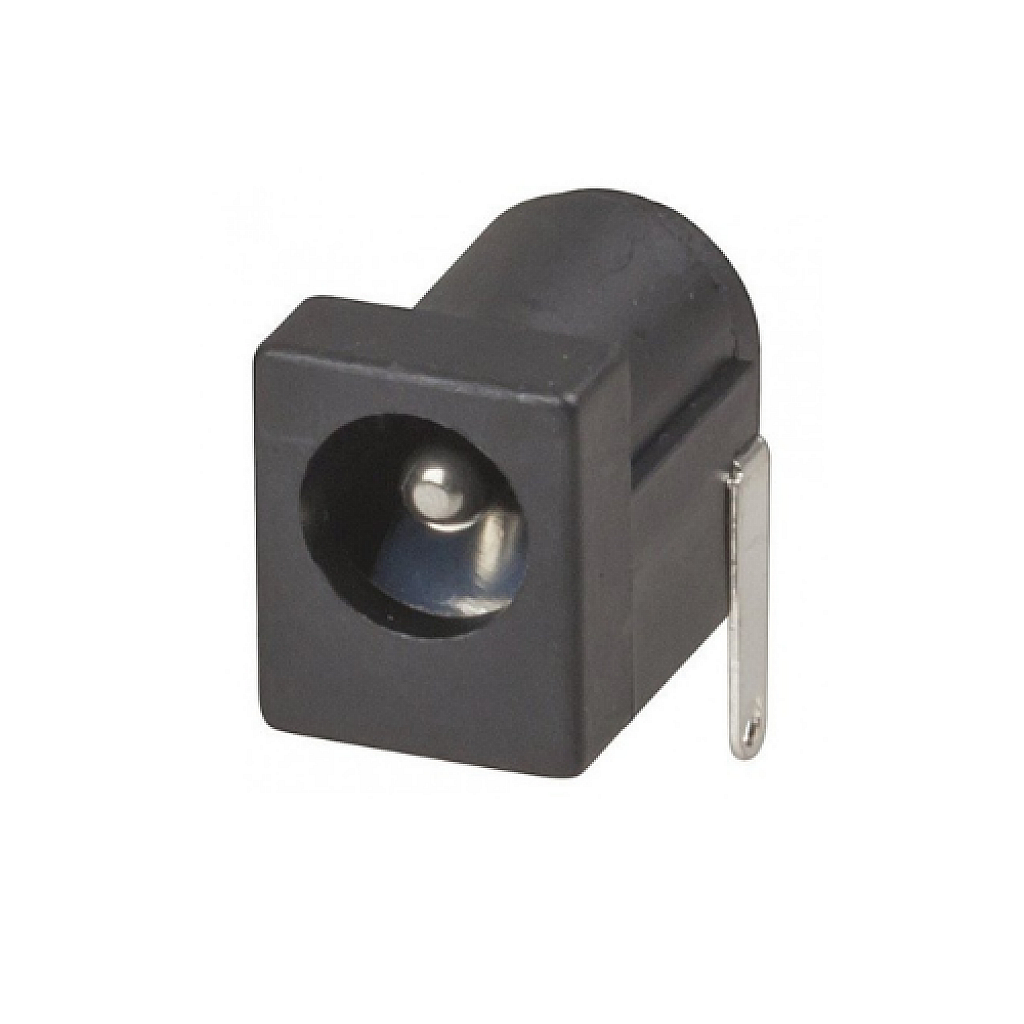

DC-005 5.5 x 2.1mm Female DC Power Jack Socket

Description

DC-005 5.5 x 2.1mm Female DC Power Jack Socket

The DC-005 is a female DC power jack socket that gives your project a standard barrel-power input. It accepts the common 5.5mm outer / 2.1mm inner male DC plug, so you can power your board from a typical DC adapter. With solder terminals for PCB or panel mounting, it is a handy, low-cost way to add a clean power connector to development boards, custom PCBs and DIY builds.

Features

• Female DC barrel power socket (DC-005 type)
• Accepts 5.5mm (OD) x 2.1mm (ID) male DC plug
• Solder terminals for PCB / panel mounting
• Centre-positive by convention
• Ideal for adding a power input to boards and projects

Specifications

• Type: DC-005 female power jack
• Size: 5.5mm (OD) x 2.1mm (ID)
• Mounting: PCB / panel, solder terminals
• Polarity: Centre positive (standard)

Applications

• Adding a DC power input to custom PCBs
• Powering development boards and modules
• DIY power supplies and adapters
• Replacing damaged DC jacks

Package Includes

• 1 x DC-005 Female DC Power Jack Socket (5.5 x 2.1mm)

Frequently Asked Questions

How does it mount?
It has solder terminals for PCB or panel mounting.

What plug fits it?
A standard 5.5 x 2.1mm male DC barrel plug.

Is it centre positive?
Yes, by convention — always check your adapter’s polarity before connecting.

Recommended Pairings

Pairs with our male DC barrel connector and MB102 breadboard. Learn more about the DC barrel connector.
