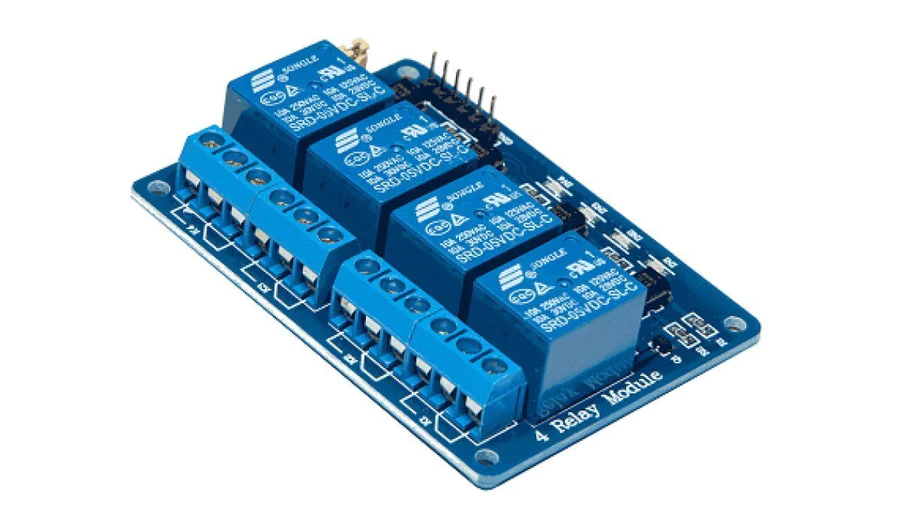

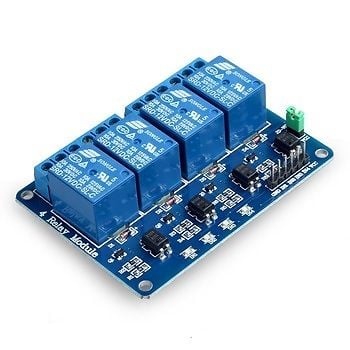

Experience the next level of control with the 4 Channel Isolated 5V 10A Relay Module with opto coupler, specially designed for compatibility with a wide range of microcontrollers, including Arduino, AVR, PIC, ARM, and more. This versatile module empowers you to effortlessly control various appliances and equipment with a large current.

Equipped with four channels, each relay output can handle a maximum contact of AC250V 10A or DC30V 10A. Connect your microcontroller directly to the standard interface and enjoy the convenience of red working status indicator lights, ensuring safe and reliable operation. The applications are boundless, ranging from MCU control to industrial sectors, PLC control, and even smart home automation.

Switching on your Raspberry Pi has never been easier! This relay module features four 5V relays, each with a rating of 10A/250V. With its opto-isolated digital inputs, you can individually control the on/off state of each relay using a microcontroller output pin. It only requires a voltage of approximately 1.0V to switch the inputs on, while being able to handle input voltages up to 5V. This makes it compatible with a wide range of devices operating between 1.0V and 5V.

Please note that this product may come with one of the following relay types: JQC3F-5VDC-C, SRD-05VDC-SL-C, or FL-3FF-S-Z. Rest assured that regardless of the model you receive, it will meet the highest quality standards.

Benefit from the convenience of high-level and low-level triggered modes. High-level triggering involves short-circuiting the signal input with the VCC cathode, while low-level triggering involves short-circuiting the signal input terminal with the GND negative electrode. This flexibility allows you to adapt the module to your specific needs.

Take advantage of the incredible features offered by this 4 Channel Isolated 5V 10A Relay Module, including a normally closed contact and a normally open contact, triode drive for enhanced relay coil performance, high impedance controller pin, pull-down circuit for malfunction avoidance, power supply and control indicator lamps, and compliance with international safety standards.

Upgrade your control capabilities and harness the power of this versatile relay module. Order now and unleash the potential of seamless control in your projects, whether it’s appliance control, 220V AC load control, or achieving isolation between control and load areas. Don’t wait any longer – revolutionize your control systems today!

Features :

1. One normally closed contact and one normally open contact
2. Triode drive, increasing relay coil
3. High-impedance controller pin
4. Pull-down circuit for the avoidance of malfunction
5. Power supply indicator and Control indicator lamp
6. The power supply and relay instructions lit, the disconnect is off;
7. The input signal, signal, common Terminal, and start conducting;
8. Useful for appliance control;
9. DC or AC signal, control, you can control the 220V AC load;
10. There is a normally open and one normally closed contact;
11. The module is compliant with international safety standards, control, and load areas isolation trenches.
