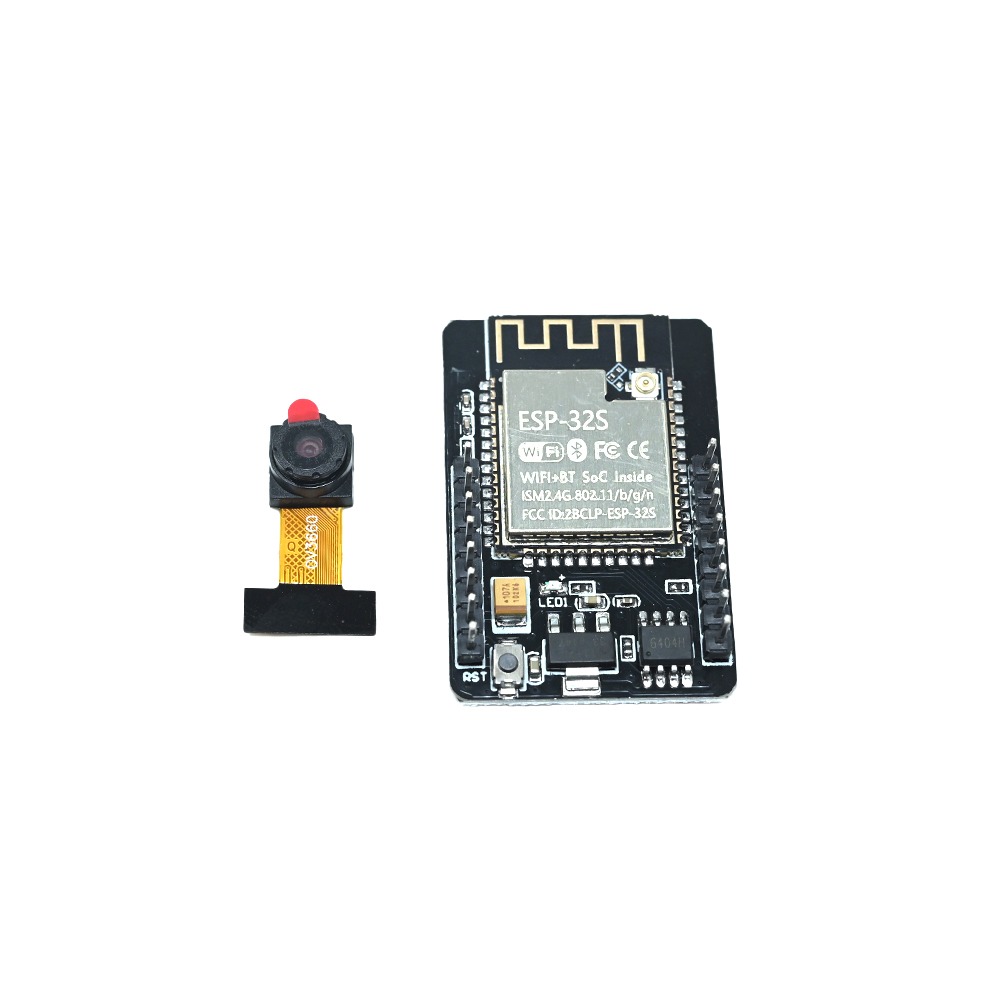

The ESP32-CAM OV2640 2MP WiFi Bluetooth Module is a compact, all-in-one wireless camera board built around the ESP32 dual-core 32-bit processor and the OV2640 2-megapixel camera. With integrated Wi-Fi 802.11 b/g/n and Bluetooth/BLE, it runs on FreeRTOS with LwIP and supports STA, AP, and STA+AP networking modes — making it ideal for face recognition, video streaming, smart surveillance, and IoT image capture projects.

Key Features

• OV2640 2MP Camera Module — Supports image capture, video streaming, and face recognition
• Dual-Core 32-bit CPU — Up to 240 MHz, 600 DMIPS performance
• 520 KB SRAM + 4 MB PSRAM — Ample memory for image buffering and processing
• Wi-Fi 802.11 b/g/n — STA / AP / STA+AP flexible networking modes
• Bluetooth + BLE — Dual-mode wireless connectivity
• FreeRTOS + LwIP — Real-time OS with lightweight TCP/IP networking stack
• SmartConfig / AirKiss — One-click Wi-Fi network provisioning
• FOTA Support — Remote firmware updates over the air
• TF Card Support — Local image and video storage via microSD slot
• Multiple Sleep Modes — Low-power operation for battery-powered deployments
• Wi-Fi Image Upload — Transfer captured images over Wi-Fi directly

Common Applications

• Face detection and face recognition systems
• Live Wi-Fi video streaming (MJPEG/JPEG)
• Smart home security cameras and doorbell cameras
• QR code and barcode scanning
• Time-lapse and wildlife monitoring cameras
• Smart attendance and access control
• IoT image capture with cloud upload

Flashing Guide

This board has no built-in USB port. A CP2102 or CH340 USB-to-TTL adapter (5-pin) is required for flashing.

• Connect IO0 to GND before powering on to enter flash/boot mode
• Flash firmware using Arduino IDE or ESP-IDF
• Disconnect IO0 from GND and press reset to run your firmware
• In Arduino IDE: install Espressif ESP32 board package, select AI-Thinker ESP32-CAM

Package Contents

• 1 x ESP32-CAM WiFi Bluetooth Module
• 1 x OV2640 2MP Camera Module

USB-to-TTL programmer and microSD card are not included.
