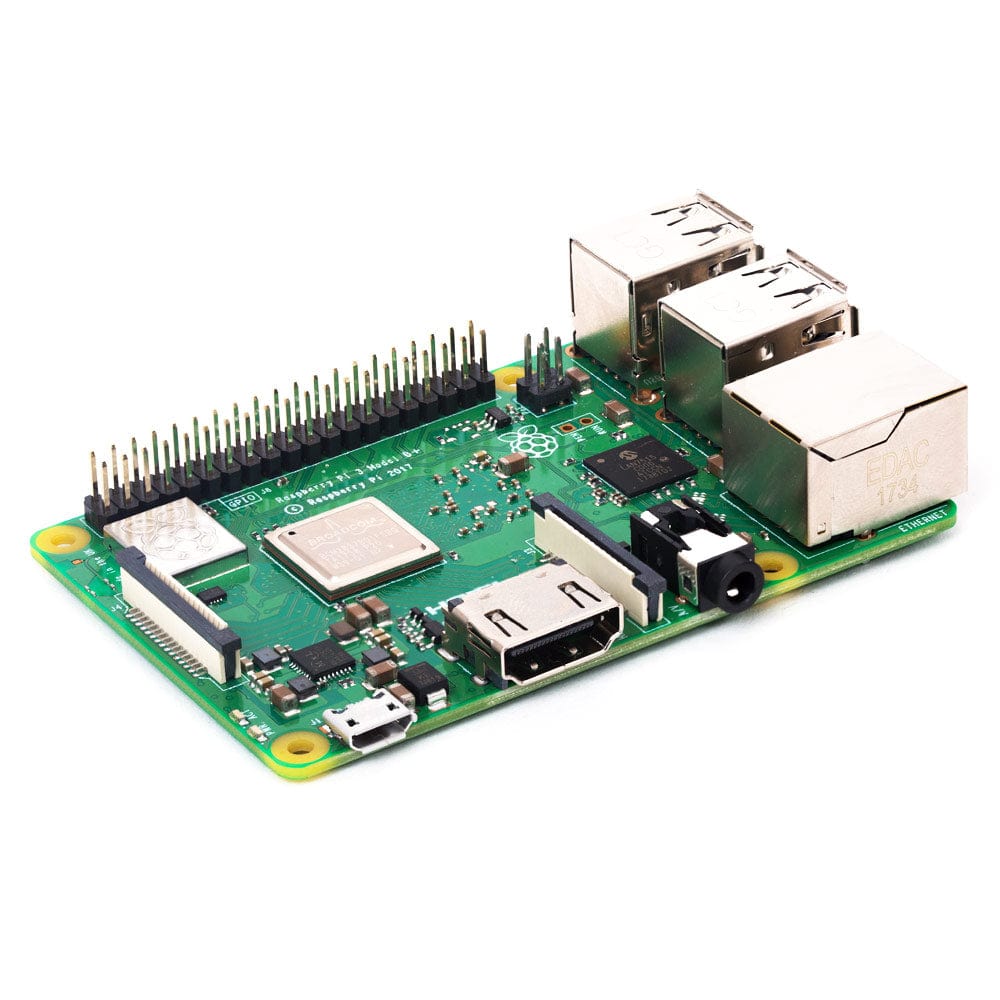

Official Raspberry Pi 3 Model B+
Official Raspberry Pi 3 Model B+ single-board computer with 1.4GHz 64-bit quad-core processor, 1GB RAM, dual-band Wi-Fi, Bluetooth 4.2, Gigabit Ethernet (300Mbps), 4 USB ports, 40-pin GPIO, and PoE support. 1-year supplier warranty.
₹4,483.00 (Incl. GST)
Loading shipping timer...
🛵 Hyderabad Customers:
Same-day delivery available via Rapido, Uber, or Porter!
Place your order before 2 PM. Extra charges may apply.
Same-day delivery available via Rapido, Uber, or Porter!
Place your order before 2 PM. Extra charges may apply.
For bulk orders or B2B inquiries, email us: [email protected]
+91 9550421866
168
People watching this product now!
-
Pick up from the Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-5 Days
Payment Methods:
Description
The Official Raspberry Pi 3 Model B+ is the most powerful board in the Raspberry Pi 3 family — a complete single-board computer (SBC) built around the Broadcom BCM2837B0 Cortex-A53 ARMv8 64-bit quad-core SoC running at 1.4GHz. Designed for makers, educators, developers, and IoT engineers, the Pi 3B+ packs desktop-class performance into a credit-card-sized board while consuming minimal power.
Compared to its predecessor, the 3B+ brings significant upgrades: faster CPU (1.4GHz vs 1.2GHz), dual-band 2.4GHz and 5GHz Wi-Fi, near-Gigabit Ethernet (300Mbps), and Power-over-Ethernet (PoE) header support — making it the go-to board for network-intensive and professional projects.
Key Features
- 1.4GHz 64-bit Quad-Core Processor — Broadcom BCM2837B0, ARMv8 architecture for fast multitasking
- 1GB LPDDR2 SDRAM — Sufficient for desktop OS, server workloads, and media playback
- Dual-Band Wi-Fi — 2.4GHz and 5GHz IEEE 802.11b/g/n/ac wireless LAN
- Bluetooth 4.2 / BLE — Built-in wireless connectivity for peripherals and IoT sensors
- Gigabit Ethernet over USB 2.0 — Maximum throughput of 300 Mbps
- Power-over-Ethernet (PoE) Support — Requires separate PoE HAT (sold separately)
- Full-Size HDMI Output — 1080p video output; stream H.264 video at up to 40 Mbits/s
- 4 x USB 2.0 Ports — Connect keyboard, mouse, storage, or USB hub
- Extended 40-Pin GPIO Header — 27 GPIO pins, I2C, SPI, UART, and 3.3V/5V power rails
- CSI Camera Port — 15-pin MIPI interface for Raspberry Pi camera modules
- DSI Display Port — 2-lane MIPI interface for the official Raspberry Pi touchscreen
- Micro SD Slot — Boot OS and store data; supports FAT32 up to 32GB
- 4-Pole Stereo Audio + Composite Video — 3.5mm output port
- 5V/2.5A DC Power Input — Via Micro USB connector
Processor & GPU Performance
The BCM2837B0 SoC integrates a VideoCore IV GPU with support for OpenGL ES 2.0, hardware-accelerated OpenVG, and 1080p30 H.264 high-profile decoding. The GPU delivers up to 1 Gpixel/s, 1.5 Gtexel/s, or 24 GFLOPs of general-purpose compute performance. When connected to an HDTV, the Pi 3B+ can stream Blu-ray quality video at 40 Mbits/s over H.264 — all without dedicated graphics hardware.
GPIO & Hardware Interfacing
The 40-pin GPIO header (2×20, 2.54mm pitch) exposes 27 programmable GPIO pins alongside UART, I2C, and SPI interfaces, plus 3.3V and 5V power rails. This makes the Pi 3B+ a popular platform for robotics, home automation, sensor networks, relay control, and custom electronics projects. Additional USB peripherals can be connected via a powered USB hub.
Power & Boot
Power the board using a 5V/2.5A Micro USB supply (sold separately). The Pi 3B+ boots automatically on power-up. For safe shutdown, always run the OS halt command before removing power to prevent SD card corruption. Using an underpowered adapter may trigger the low-voltage warning and cause instability.
Note: Only use the recommended 5V/2.5A power supply. Using any other power supply may cause damage and will void the warranty. Ensure your NOOBS card or OS image is updated to the latest version for full compatibility with the Pi 3B+.
What Can You Build with Raspberry Pi 3B+?
- Desktop PC replacement running Raspberry Pi OS or Ubuntu
- Home media centre with Kodi or LibreELEC
- Retro gaming console with RetroPie
- IoT gateway for MQTT, Node-RED, or Home Assistant
- Web server, NAS, VPN server, or Pi-hole ad blocker
- Robot controller using GPIO and motor drivers
- Security camera system with Pi Camera Module
- Learning platform for Python, Linux, and electronics
Package Contents
- 1 x Official Raspberry Pi 3 Model B+
Power supply, microSD card, case, and accessories are sold separately. Visit our Raspberry Pi accessories section for compatible add-ons.
Specification
| Item Type: | Development Board |
| Model: | Pi 3 B+ |
| UPC | :713179640259 |
| Model Name: | Raspberry Pi Model 3B+ |
| Processor | Broadcom BCM2837B0, Cortex-A53 (ARMv8) 64-bit SoC @ 1.4GHz |
| RAM: | 1GB LPDDR2 |
| Connectivity: | Gigabit Ethernet over USB 2.0 |
| Operating Power | 5V/2.5A DC |
| GPIO | Standard 40-pin GPIO Header |
| Video and Sound | 2-Lane MIPI DSI Display Port |
| Clock Speed | 1.4 GHz |
| On Board Ports | 4 x USB 2.0 Connector, 40-pin 2.54 mm (2x20 strip) GPIO, 15-pin MIPI Camera Serial Interface (CSI-2), Full-size HDMI Output Port, 4-pole stereo output and composite video port |
| Micro SD Card Slot (Y/N): | Yes (FAT32 format), support maximum 32G Micro SD Card |
| Operating Temperature (°C): | -10 to 60 |
| Weight (g): | 44 |
| Length (mm): | 85 |
| Width (mm): | 56 |
| Shipping Weight | 0.047 kg |
| Shipping Dimensions | 9 × 6 × 4 cm |
Warranty
Supplier Warranty: 1 year from date of delivery, provided by KSP Electronics against manufacturing defects only. In case of a verified defect, the faulty part will be replaced after confirmation by our technical team. Refunds or full product replacements are not offered under this warranty.
How to Claim: Email [email protected] or call +91 95504 21866 with your order details and a description of the issue.
What voids the warranty: Misuse or improper handling, tampering or unauthorized modifications, static discharge or electrical damage, accidental damage or impact, water, fire, or chemical damage, soldering or any physical alteration.
QnA
Q: What power supply does the Raspberry Pi 3B+ need?
It requires a 5V/2.5A Micro USB power supply. Using a lower-rated supply may cause the low-voltage warning and lead to instability. Always use a quality power adapter rated for at least 2.5A.
Q: What operating system can I run?
The Pi 3B+ officially supports Raspberry Pi OS (32-bit and 64-bit), Ubuntu, LibreELEC, RetroPie, and many other Linux-based distributions. Download images from the official Raspberry Pi website and flash using Raspberry Pi Imager.
Q: Does it include a microSD card?
No. The microSD card is sold separately. We recommend a Class 10 / A1 card (16GB minimum, 32GB recommended) for best performance. The Pi 3B+ supports FAT32 format up to 32GB.
Q: What is the difference between Pi 3B and Pi 3B+?
The 3B+ improves on the original 3B with a faster 1.4GHz processor (vs 1.2GHz), dual-band 5GHz Wi-Fi (vs 2.4GHz only), faster Ethernet (300Mbps vs 100Mbps), and PoE header support.
Q: Can I use it headless (without a monitor)?
Yes. Enable SSH before first boot by placing an empty file named "ssh" on the boot partition, or use Raspberry Pi Imager to pre-configure SSH and Wi-Fi credentials.
Country Of Origin
| Country of Origin | United Kingdom |
|---|---|
| Manufacturer | Raspberry Pi Ltd |
| Manufacturing Partner | Sony UK Technology Centre, Pencoed, Wales |
| Brand Headquarters | Cambridge, United Kingdom |
| Sold By | KSP Electronics, India |
